7Pcs 8Pcs HSS and TCT Annular Cutter Set

FOB Reference Price:Get Latest Price
$20.00 - $50.00 / Set | 50 Set/Sets (Min. Order)
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)

More

Graphic customization (Min. Order: 50 Sets) Less
Samples:
$10.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
TONGYU
Model Number:
TY-Annular Cutter Set-Mix
Type:
Core Drill Bit
Use:
Metal Drilling
Product Name:
TCT Annular Cutter
Material of tip:
Tungsten Carbide Tip
Material of body:
H13 ( 4Cr5MoViSi )
Shank type:
Universal shank
Surface treatment:
Sand blasted
OAL:
1" ( 50mm )
Packing:
Aluminium Case
SIze:
14mm ~ 24mm
Service:
OEM
MOQ:
1 set
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
7Pcs 8Pcs in Plastic Box and Metal Box
Port
Shanghai,Ningbo,Guangzhou
Hole Saw Guide

Metal Tools Guide

Product Description
 Product Photos

 Product Description

 More Choice For You: Home > Annular Cutter

Product Name

7Pcs 8Pcs HSS and TCT Annular Cutter Set

Sizes

HSS Annular Cutter Set: 6Pcs Annular Cutters: 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"*4"

                                        1Pc HSS Pilot Pin: 1/4”×4"

TCT Annular Cutter Set: 6Pcs Annular Cutters: 9/16",11/16",13/16",15/16",1",1-1/16"*4"

                                        2Pcs Pilot Pins: 1/4”×4“

Material

HSS Annular Cutter: M2AL High Speed Steel

TCT Annular Cutter: Tungsten carbide tip+45# Steel

Shank

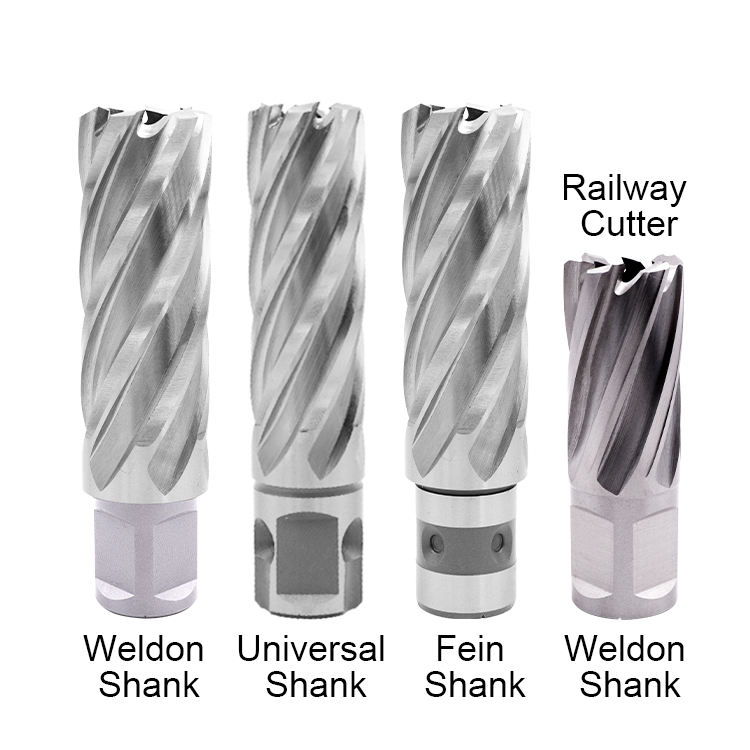

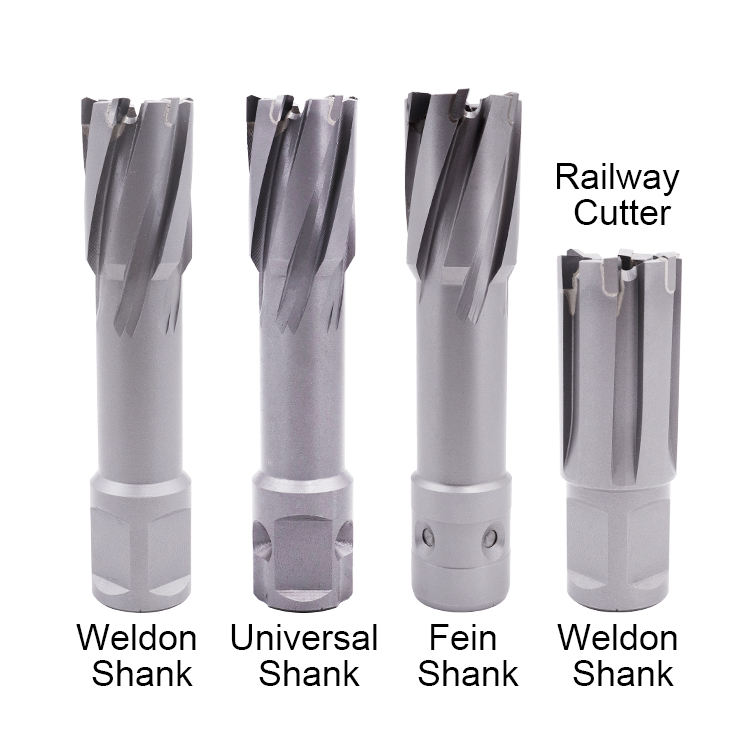

Weldon Shank   (Universal Shank and Fein Shank are available)

Surface FinishBright   (TIN coating and Titanium coating are available)

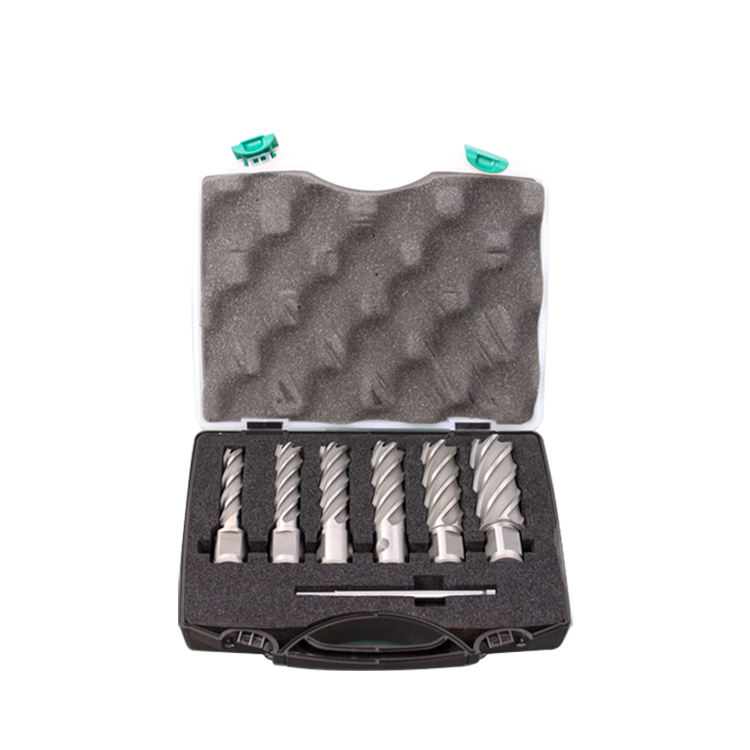

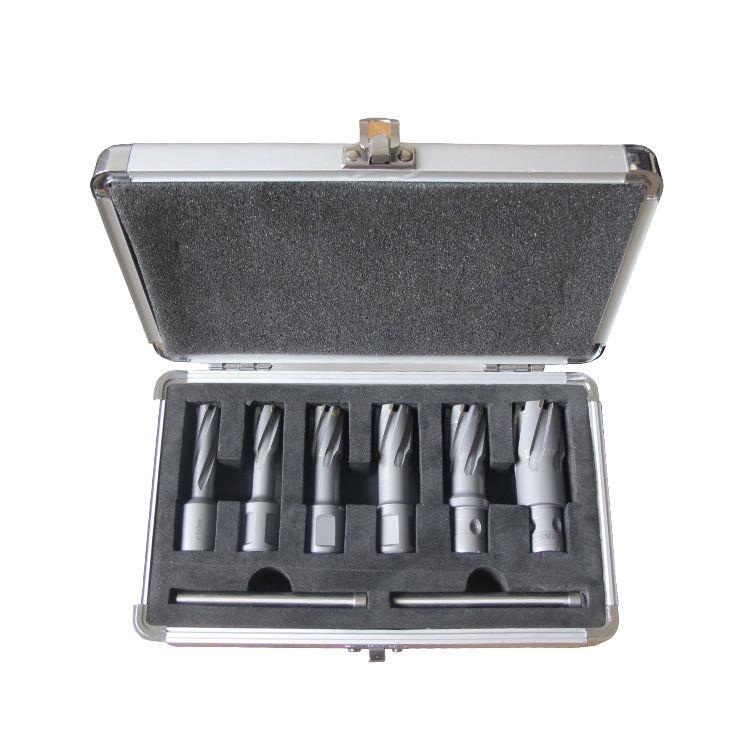

Package7Pcs 8Pcs in Plastic Box and Metal Box
Features

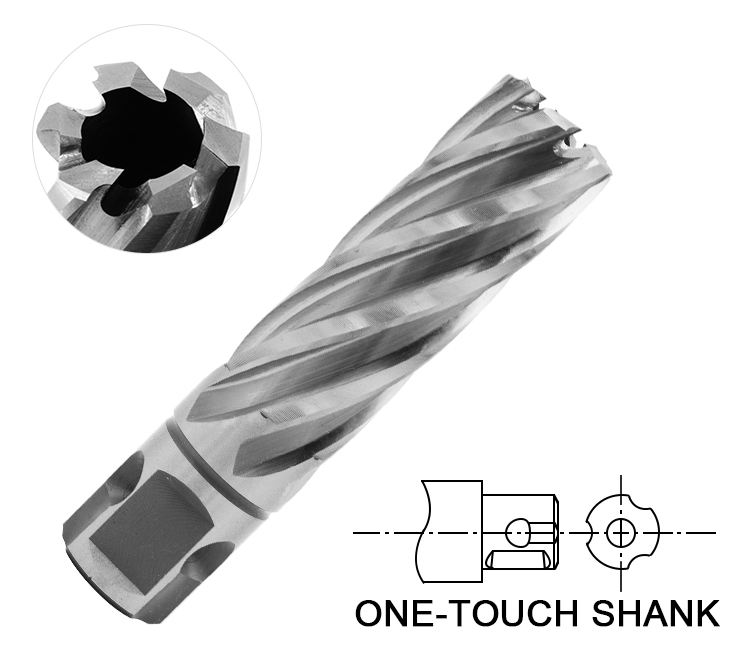

HSS Annular Cutter:

1.Made of high quality & super tough high speed steel with multi-cut geometry for ply-cutting and lower friction to reach better endurance and less breakage ;

2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals;

3.Optimised cutting edge geometry for increased cutting performances and reduced cutting forces;

4.The effective cutting angles are designed for universal use in various sorts of steel;

5.Improved removal of chips thanks to U-shaped recesses. The specific geometry of the recess reduces the thermal load on the HSS core drill as the heat created in cutting is removed with the chips to a very great extent;

6.Reduction of the friction between the HSS core drill and the workpiece thanks to optimised spiral-shaped guide chamfers;

7.Weldon shank fit into a majority of magnetic drills.

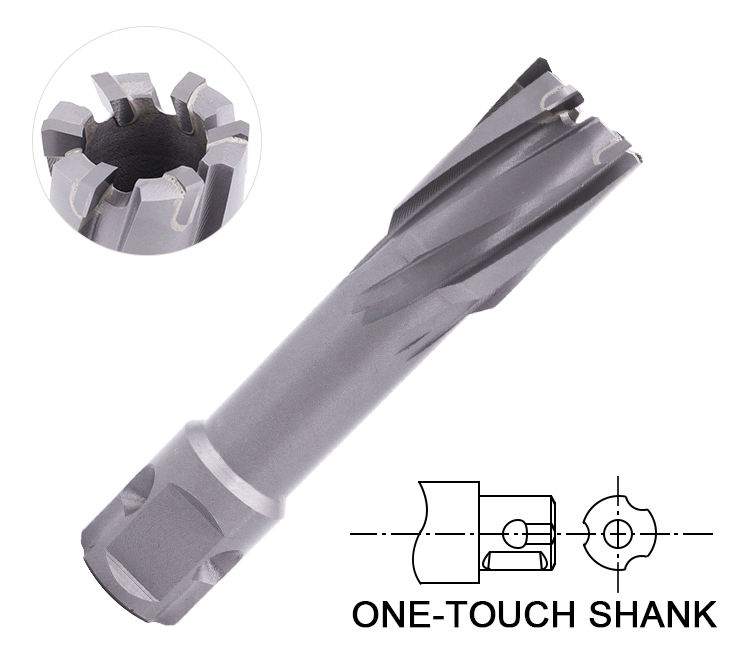

TCT Annular Cutter:

1.Tungsten carbide tipped annular cutters combine extreme hardness and durability with a wide range of possible applications in a convincing product.

2.Unique tooth geometry, cutting teeth specially grinding by CNC Machine to assure all of teeth in same level,allows for better centering and faster cutting;

3.Thin wall design enables cutters to cut faster and more efficiently by removing less material during drilling;

4.Shorter flute design allows for chips to fall freely from cutter;

5.Universal shank cutter is designed for use in any magnetic drill press.



 Product Sizes





* Other Sizes are available,Concact Us to Learn More.

HSS Annular Cutter
